Diagrams

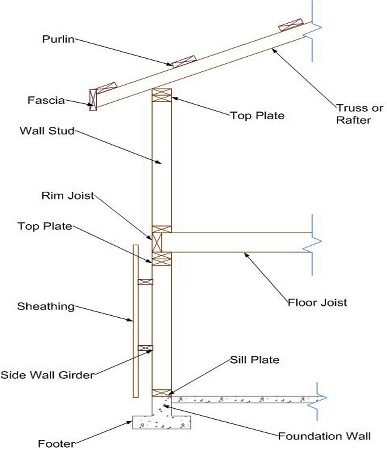

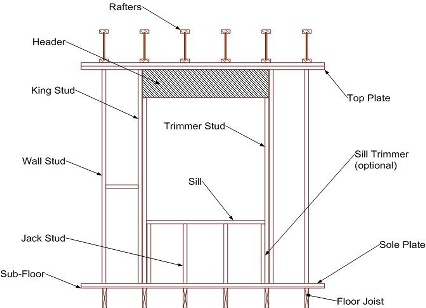

Framing Terminology
These drawings do NOT represent actual framing
diagrams, but should be used for identifying common
framing terms for wood members.
Not all framing terms are mentioned and some may have
other names or be referred to by multiple names.
